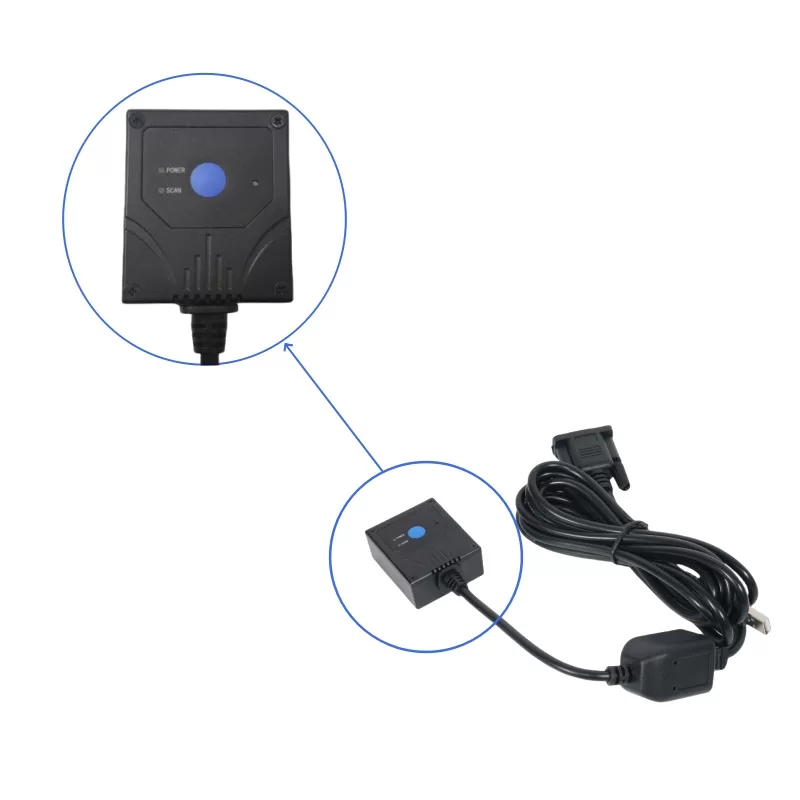

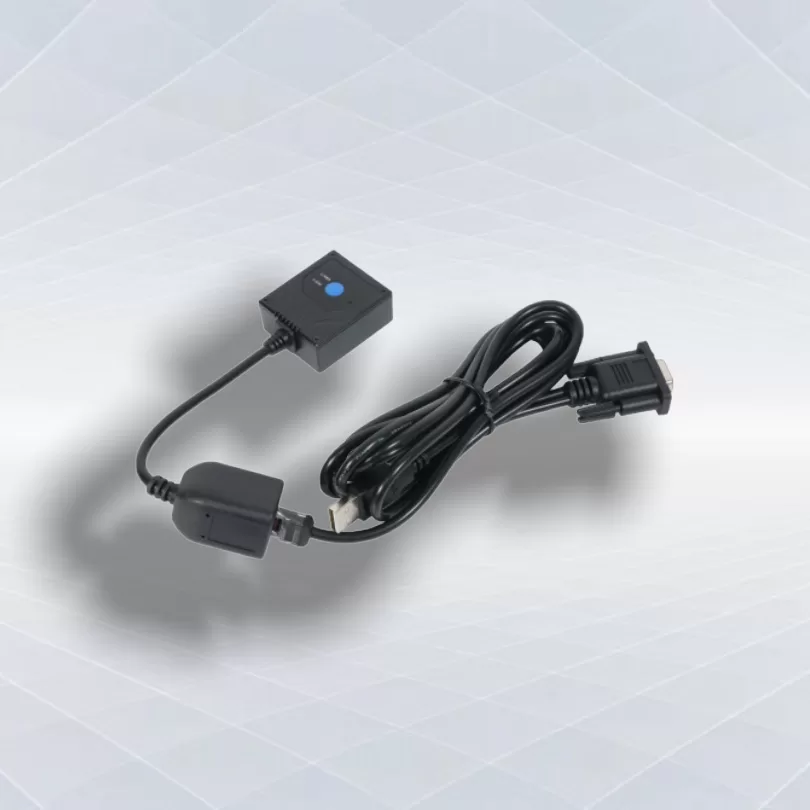

Hot Sale Wire Barcode Scanner met gevorderde kenmerke
This COMS imaging mode scanner features a USB interface suitable for a variety of electronic devices. It scans barcodes using technologies such as lasers and cameras, transmitting the acquired data to computers or other smart devices, thus enabling rapid processing and application of information. This feature makes barcode scanners play an irreplaceable role in multiple fields. which 1D&2D QR codes support both paper and screen.
Beskrywing
COMS Imaging Sensor：
This feature makes the wire barcode scanner play an irreplaceable role in multiple fields, which support both 1D and 2D QR codes on paper and screens. The COMS mode can achieve instant recognition and interpretation of QR codes upon proximity, significantly enhancing work efficiency. Moreover, we can provide various styles to meet your needs.
| Beeldsensor | CMOS | |
|---|---|---|
| Resolusie verhouding | 1280 * 800 (Volle blootstelling) | |
| Koppelvlak | USB (HID, CDC) | |
| Read Code System | 2D | MicroQR, PDF417, QR Code, DataMatrix, Aztex, Maxicode |
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93,UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,Industrial 2 of 5, Standard 2of 5, Plessey, MSI-Plessey, etc |
|
| Reading accuracy | 5mil | |

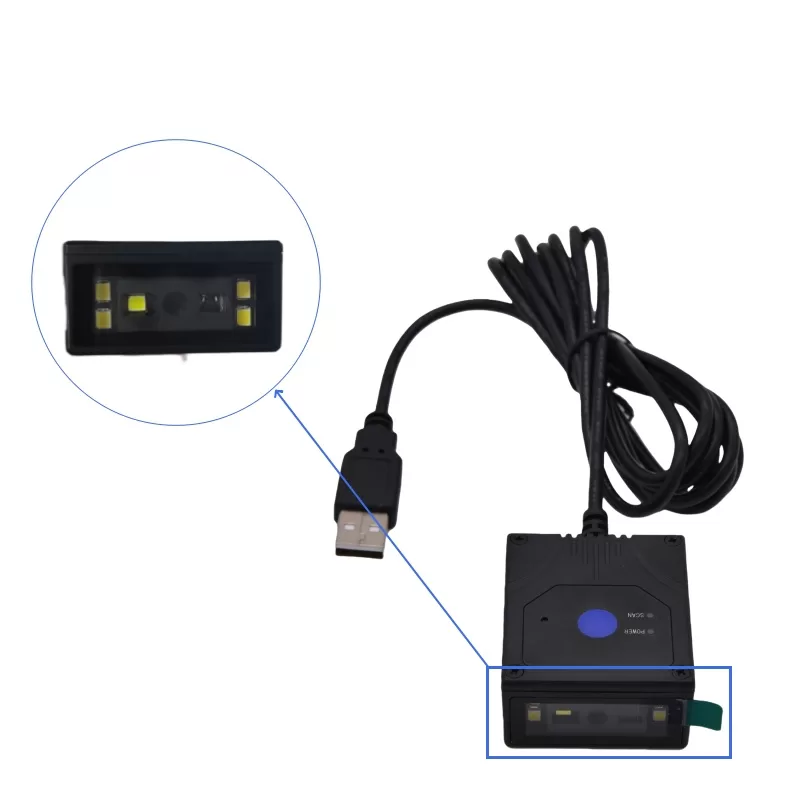

| Beligting | Wit LED | |
| Rotational sensitivity | Spin | 360° |
| Lean | ±50° | |
| Deflection | ±50° | |
| Symbol contrast | ≥ 30% | |
| Veldhoek | Vlak | 49° |
| Vertikaal | 37° |
|
| Toepassingsomgewing | EAN 13 | 55mm-230mm (13mil) |
| QR | 35mm-170mm (15mil) | |
| Data Matrix | 40mm-115mm (20mil) | |
| QRCode (Wechat) | 40mm-410mm(32mil) | |
| Afmeting (mm) | 42 x 48,5 x 21 (L x B x H) | |
| Huidige verbruik | 300mW | |
| Spanning insette | 5VDC | |
| Huidige | Maksimum stroom | 70mA @5V |
| Tipiese stroom | 60mA @5V | |
| Omringende lig | 0 ~ 100 000 LUX | |

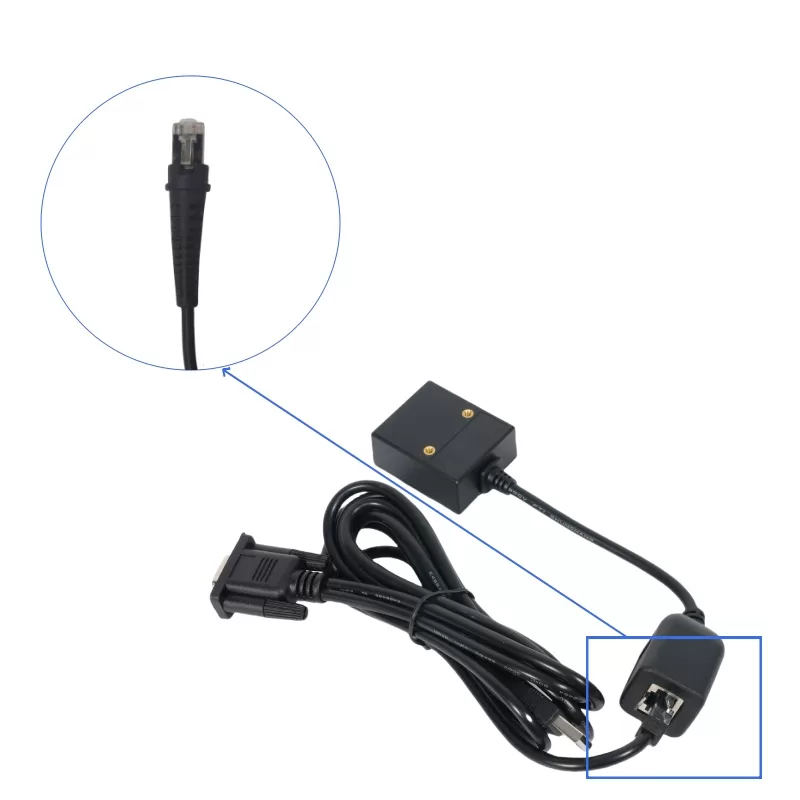

| USB kabel | USB-kabel, dit word gebruik om die leesenjin aan die inligting-ontvangende gasheer te koppel |
