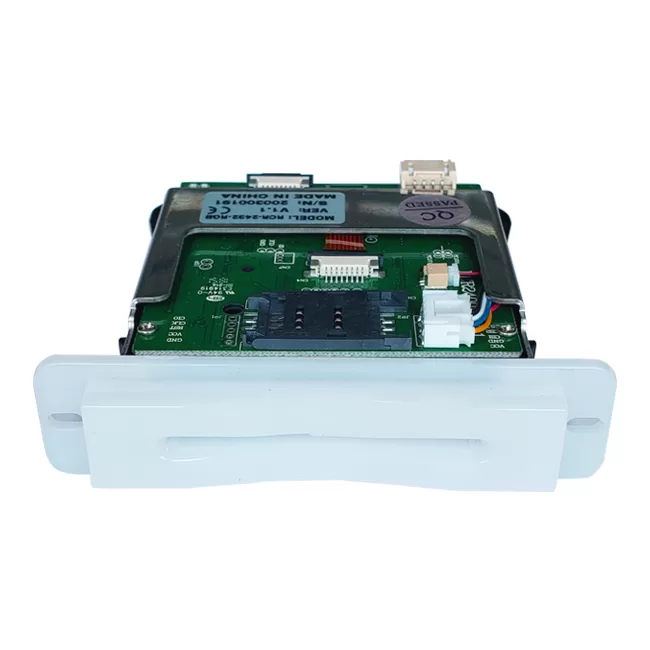

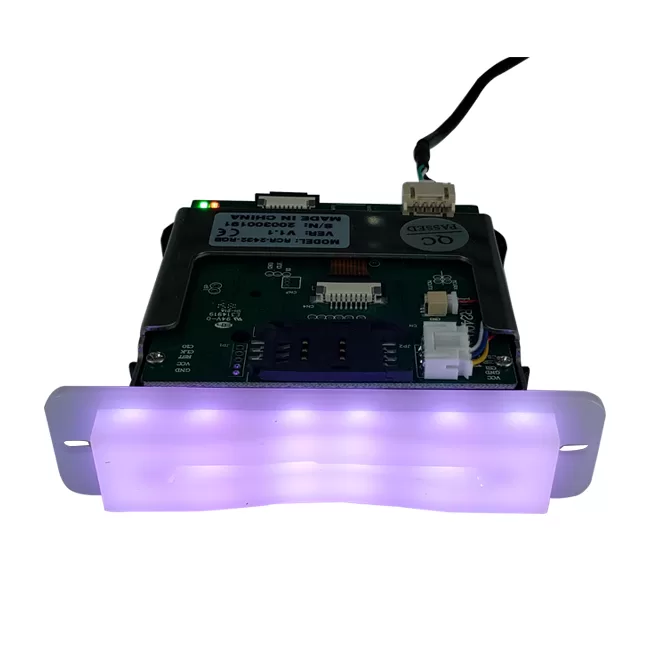

IC RF RGB Bezel Manual Insertion Card Reader for Kiosk
The r-Cloud IC RF RGB bezel manual insertion card reader is engineered for kiosks, gaming machines, and access control systems. Built on the proven RCR-2410 platform, it offers enhanced stability and performance. With RGB bezel options, it delivers a modern, stylish design that integrates seamlessly with existing equipment.
説明
Radio Frequency Identification (RFID), also known as RFID, is a communications technology commonly known as electronic tags. Specific targets can be identified by radio signals, and relevant data can be read or written without establishing mechanical or optical contact between the identification system and a specific target.
RFID reader is also divided into mobile and fixed. RFID technology is widely used at present, such as: libraries, access control systems, and food safety traceability.
The manual insertion card reader is developed for a gaming machine according to casino casino-specific environment. In a short time after release, it became popular among casino vendors and casino system integrators, designed to fit perfectly in existing slot machines without any modifications.
仕様：
| 電圧入力 | DC5.0±5%V /USB電源 |
|---|---|
| 消費電流 | 静電流: < 50 mAPeak current: < 200 mA |
| インタフェース | RS-232 serial port/USB 2.0 interface |
| カード仕様 | 幅：53.92～54.18mm、長さ：85.47～85.90mm、厚さ：0.76～1mm(作業標準0.76mm) |
| 環境条件 | 動作時：-20℃～50℃、0～90％RH（結露なきこと）、保管時：-25℃～80℃、0～95％RH（結露なきこと）。 |
| オンラインダウンロード | ISPオンラインダウンロードをサポートします。 |
| 正味重量 | 約：0.2kg（付属品含まず） |
| ROHS規格 | ROHS規格に準拠しています。 |
| RFカード規格 | ISO1443-3/-4規格に準拠、周波数13.56MHzの非接触ICカード（TYPE A、TYPE B、CPUカード）。 1K シリーズ S50/S70/UL カード読み取り/書き込み。オプションの ISO15693 |
利点
1:Easy to operate, simple and practical and suitable for automatic
2:control reading convenient and fast
3:data reading without light source recognition speed, can handle multiple tags at the same time
4:achieve a long life , apply wide-range
5:label data to dynamically change
6:better security
7:customize service
